Borut Savski - Audio frequencies as joystick control signals Products > Hard (viewed: 66854)
free download

Information:

author: Borut Savski
title: Four bandpass active audio frequency filters to control a joystick

A coproduction with DUM.
http://www.dum-club.si/

Circuit:

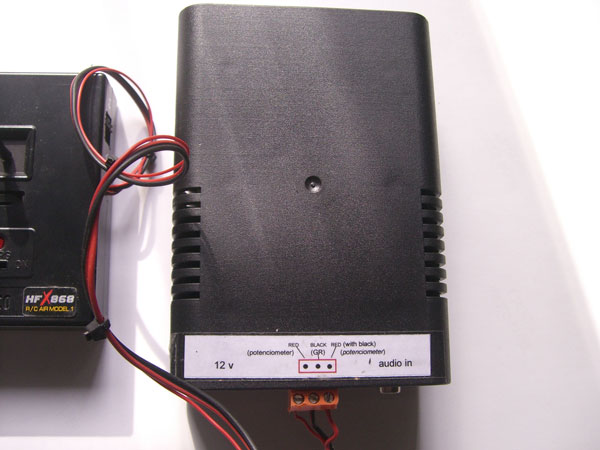

On the photo left one can see a boxed circuit. We receive the audio signal through the cinch input, from where it gets distributed to the four pcb inputs (the circuit is a simple quadruple version of the basic active filter). For the correct plus and minus voltages we have a power supply made from 7809 stabilizer and a resistor that defines the correct negative voltage needed for the joystick controller. Better photographs will follow.

The video of dancing balloons can be seen here:
http://www.vadimfishkin.si/l_air/l_air.htm


Download these files

pdf VadimFilterAdder2009_2 schematics
pdf VadimFilterAdder layout
pdf VadimFilterAdder PCB





Linked items
Borut Savski - Analogic event generatorBorut Savski - Analogic event generator
Borut Savski - Theremidi - Capacitive proximity sensor IIBorut Savski - Theremidi - Capacitive proximity sensor II
Borut Savski - Theremicro, Theremini - Capacitive proximity sensor IBorut Savski - Theremicro, Theremini - Capacitive proximity sensor I

 Functionality:

Electronic circuit was made for a project of Vadim Fishkin, to control the 3D choreography of two balloons by means of one audio channel (left-right and up-down) - according to the music recorderd on the other audio channel of a cd. For this we used four separate audio frequencies.
